Alpe d'Huez

The Ultimate Road Bike

We are known for the perfect balance of low weight, high efficiency, and responsive handling road bikes. The TIME Alpe d'Huez is the ultimate road bike that has stiffness and comfort rolled into one.

ALPE D'HUEZ DISC

The Ultimate Composite Blend

We took the Vectran®–enhanced structure of the ADH 01 and increased the amount of light and stiff Toray M40J and added Dyneema®, the World’s Strongest Fiber® to create our most advanced BCS hybrid blend ever.

Unique Technologies

Ultra strength

Bio-Based Dyneema® is Lighter, Stronger and Smarter. Because we weave our own braided carbon structures (BCS) we have been able to add a hybrid Carbon/Bio-Based Dyneema® layer that increases strength in the structure without compromising stiffness or weight.

Dyneema® fiber is 15x stronger than steel at the same weight, with a tensile strength up to 43 cN/dtex. Dyneema® fiber is so light that it floats on water and furthermore has a very high modulus (resistance against deformation).

DYNEEMA® TECH

Sublime ride feel

Braided Carbon Structure is the weaving of dry fibers into complex bi-directional ‘socks.’ These tubes of fiber are easy to tune with different materials – TIME currently choses from 16 filaments to perfectly tailor our layups. This process also allows something that is unheard of in the cycling world; continuous fibers that run the full length of a structure. With standard prepreg layup, fibers end where the sheets do, creating inherent weaknesses.

BCS is the way we’ve always made our products and we’re the one of the only bike manufacturers doing it.

BCS TECH

Unmatched Quality

Resin Transfer Moulding is the best way to minimize defects in the frame structure. By laying up dry fibers and then injecting resin at high pressure between rigid external AND internal molds, air pockets and voids are eliminated. Unlike the industry-standard prepreg layup and air bag moulding, RTM quality is uniform and consistent yielding a beautiful near-finished product. While the RTM process is ubiquitous in aerospace and high-end automotive applications, it’s almost unheard of in cycling and your TIME is unique.

RTM Tech

Features

DEDA DCR

 The included DEDA S-DCR headset is compatible with standard stems and handlebars for semi-integrated setup or add a full DCR headset cover/stem/bar available from DEDA to finish your TIME with fully-integrated cables and brake hoses.

1X Derailleur cover

With the included TIME Derailleur Mount Cover, your 1X setup will look as slick and finished as the rest of your bike. Full compatibility with single and double–ring drivetrains doesn’t mean making a visual compromise.

Forged Carbon

With 20x the fatigue life of steel or alloy, we use forged carbon where others spec heavier aluminum parts. A 60% fiber content allows drilling and threading without cracking, processes that are much more challenging with prepreg construction.

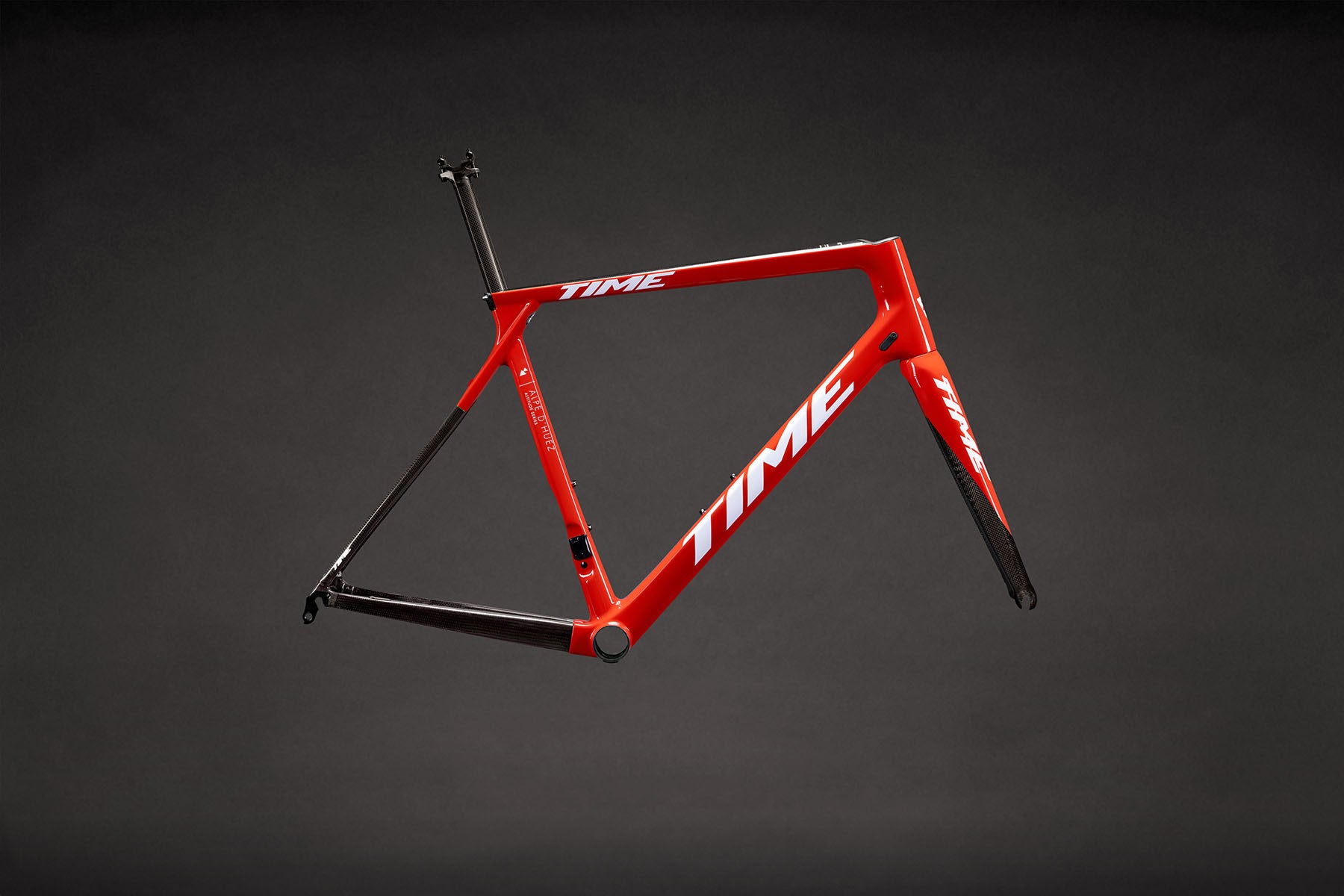

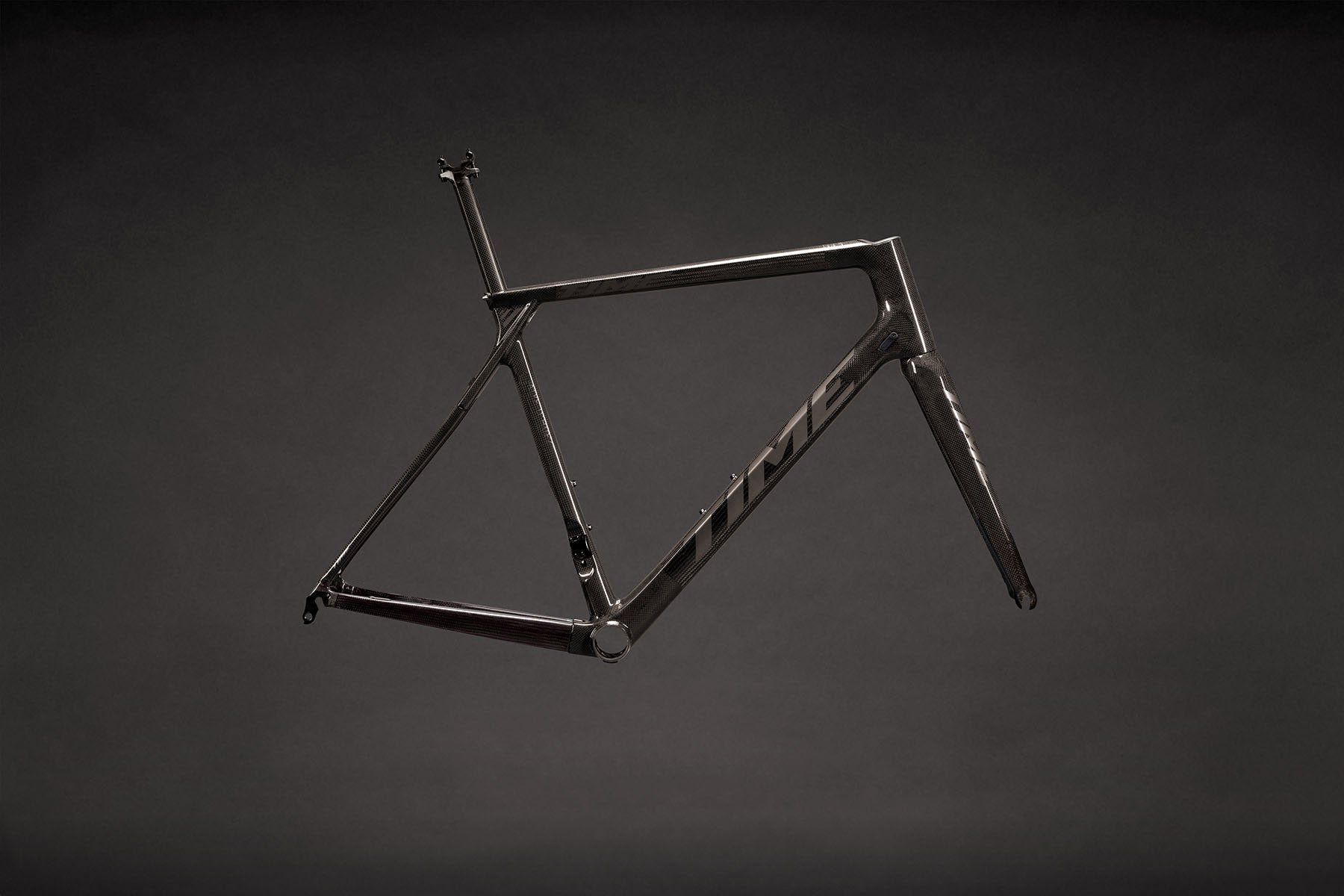

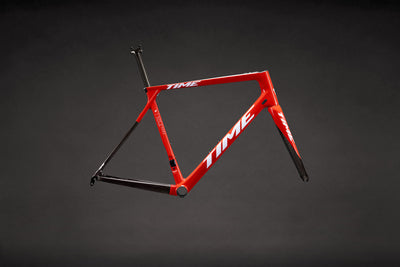

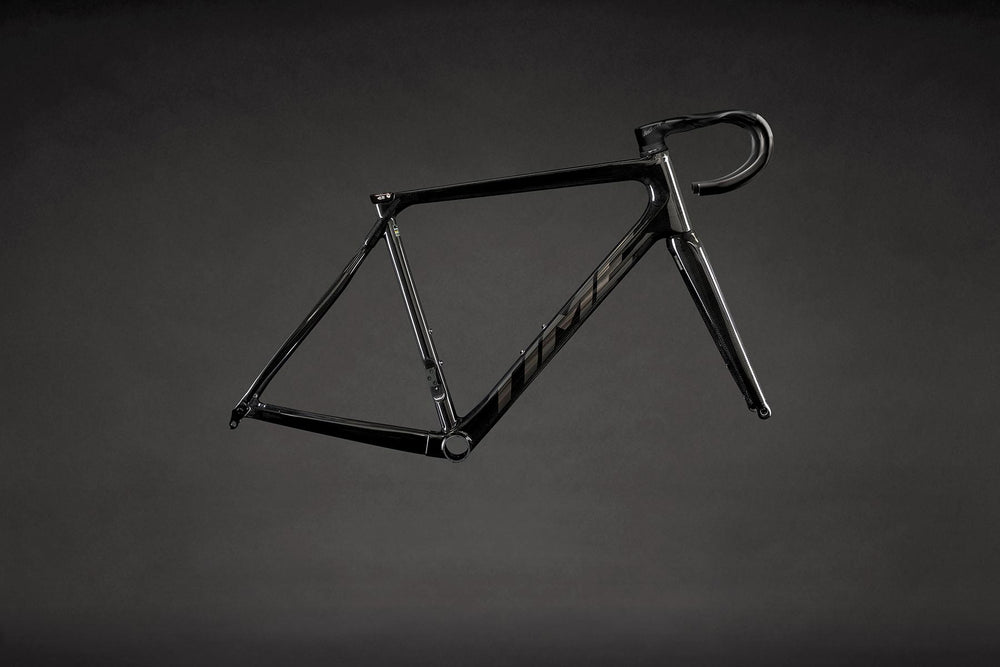

Alpe d'Huez // Models

ADH DISC FRAME SPECIFICATIONS
FRAME MATERIAL
BCS Carbon Fiber, Vectran™ and Dyneema®
THRU AXLES
12x120x1.5mm Pitch F, 12x159x1.5
SIZES
XS, SM, MD, LG, XL
SEATPOST DIAMETER
ø 27.2mm
FORK STEERER TUBE
Tapered 1-1/8" to 1-1/2" Vectran™ Enhanced
SEATPOST CLAMP
Proprietary ADH Alloy
HEADSET BEARINGS
Top and Bottom 1-1/2" (with internal routing compression ring)
SHIFTING
Compatible with Electronic Shifting Systems. Mechanical-compatible frames available by special order.
WHEEL SIZE
700c, ETRTO 28-622
FRONT DERAILLEUR
1X and 2X Compatible
MAXIMUM TIRE WIDTH
28c
REAR DERAILLEUR
Standard Mount
BOTTOM BRACKET
PF BB386 EVO
BRAKE TYPE
Front and Rear Flat Mount Disc
DISC HUB STANDARD
12x100mm FRONT, 12x142mm REAR
ROTOR SIZE
Max 160mm with DM Adapter
