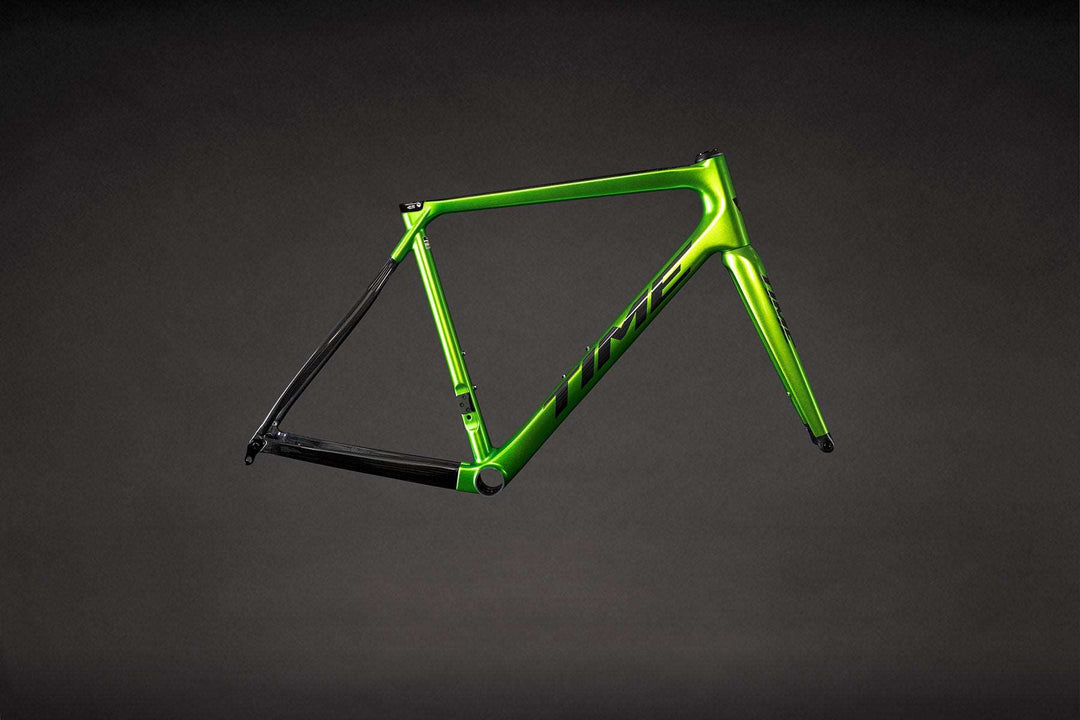

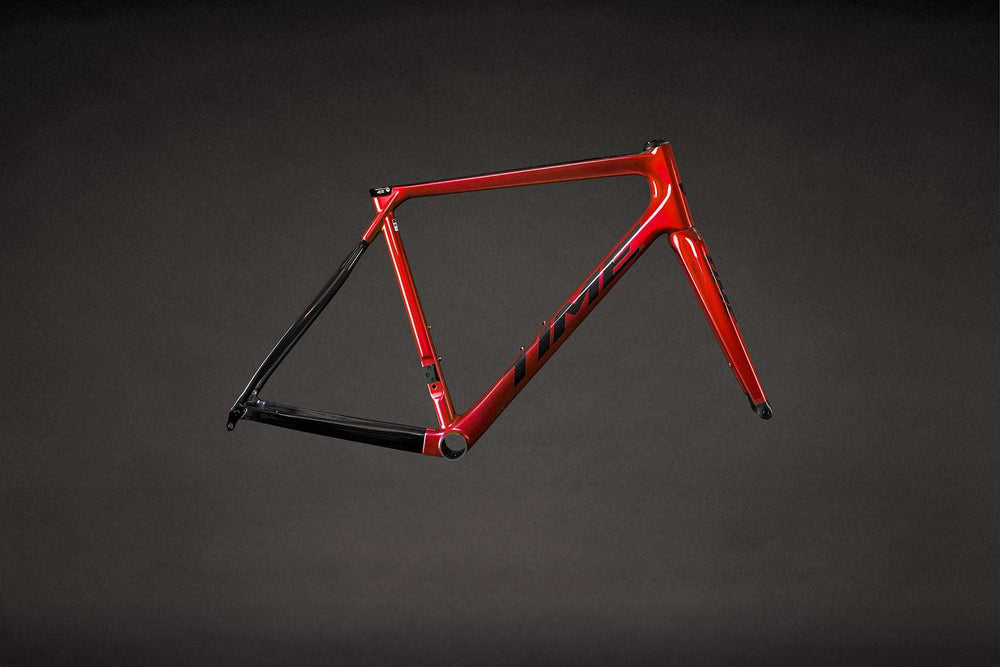

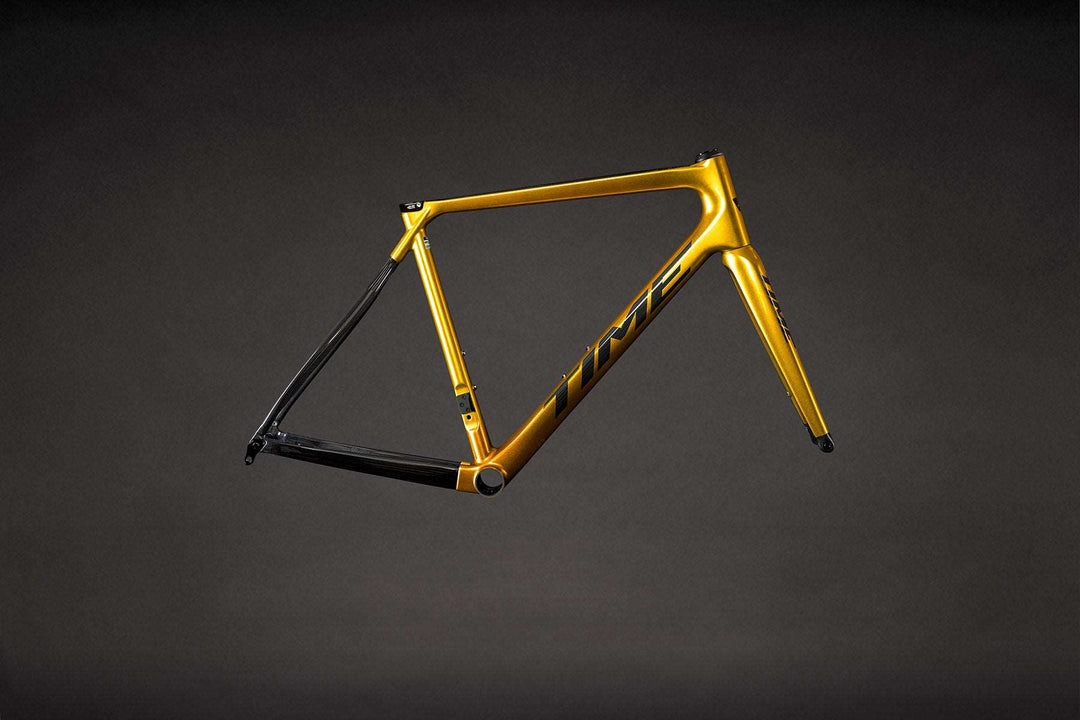

ALPE D'HUEZ DISC FRAMESET

Sale price$3,799.00
/

Size
Color

The Evolution of Alpe d'Huez

Alpe d'Huez is more than a climb in Le Tour. Helicopters, police escorts, blue smoke, screaming face-painters, and a crowd of 300,000 cycling fans guarantee that every visit to this legendary summit will be crowned forever in glory. It's this unmistakable marriage of history, spectacle, colossal effort, sportsmanship, and beauty that is woven into every Alpe d'Huez frame we make. To ride the new TIME Alpe d'Huez disc is to enjoy something that eludes description that can't be duplicated by any other bike. This is the Ultimate Road Bike.

Ready to Paint

Time framesets can be purchased unpainted in a prepped and sanded condition and with all hardware. Deliver the Ready to Paint frameset to the paint shop of your choosing to create the TIME of your dreams!

What's Included

• DEDA S DCR Headset for Semi & Fully-Integrated Cockpits
• Front and Rear Thru Axles
• Alloy Bottle Bolts
• Integrated Seatpost Clamp
• (1) Derailleur Hanger
• Single Cover and Drivetrain Conversion Kit


ADH DISC FRAME SPECIFICATIONS
FRAME MATERIAL
BCS Carbon Fiber, Vectran™ and Dyneema®
THRU AXLES
12x120x1.5mm Pitch F, 12x159x1.5
SIZES
XS, SM, MD, LG, XL
SEATPOST DIAMETER
ø 27.2mm
FORK STEERER TUBE
Tapered 1-1/8" to 1-1/2" Vectran™ Enhanced
SEATPOST CLAMP
Proprietary ADH Alloy
HEADSET BEARINGS
Top and Bottom 1-1/2" (with internal routing compression ring)
SHIFTING
Compatible with Electronic Shifting Systems Only
WHEEL SIZE
700c, ETRTO 28-622
FRONT DERAILLEUR
1X and 2X Compatible
MAXIMUM TIRE WIDTH
28c
REAR DERAILLEUR
Standard Mount
BOTTOM BRACKET
PF BB386 EVO
BRAKE TYPE
Front and Rear Flat Mount Disc
DISC HUB STANDARD
12x100mm FRONT, 12x142mm REAR
ROTOR SIZE
Max 160mm with DM Adapter

Geometry

Ordering // What to Expect

Buying a bike from our online store is simple and convenient… but what does it look like when your TIME arrives? We have several options and flexible shipping configurations.

Framesets

TIME bikes are available as framesets ready to build up into your dream bike.

Complete Bikes

TIME can ship your new bike in two ways: Assembled and Tuned in an XL Bikeflights Carton or in several smaller boxes requiring assembly. Our customers know which they prefer, so we accommodate your preference.

United States Customers

You will be billed standard State and Local sales tax which varies by your location.

International Customers

• Purchases may be subject to Import Duties or Tax which vary by your location outside the USA.

• At check-out you pay Time Bicycles the price of the frame and shipping without any additional Import Duties or Tax added.

• Any Import Duties or Tax on your purchase will be due on delivery to the shipping carrier, who may charge an additional brokerage fee.
