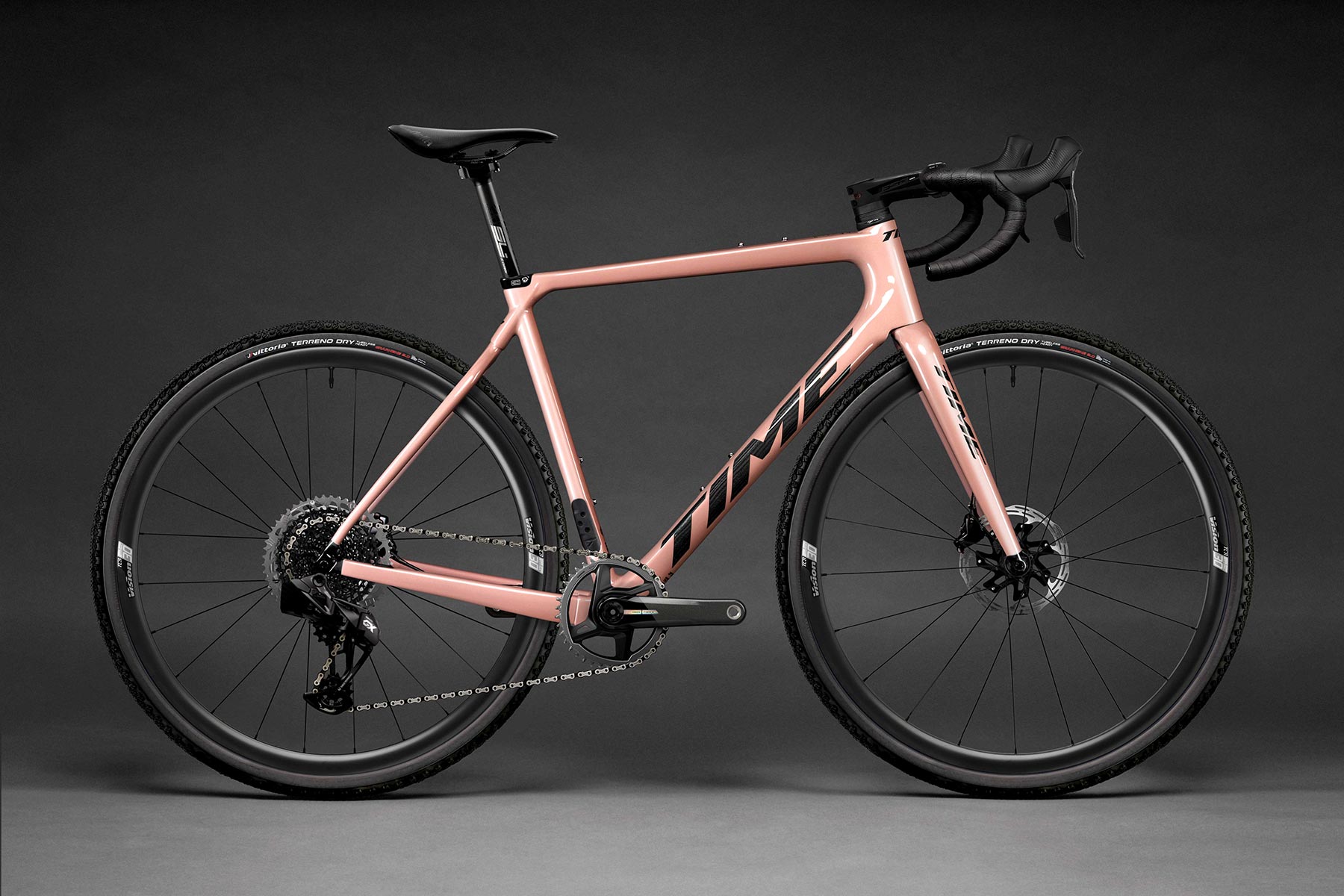

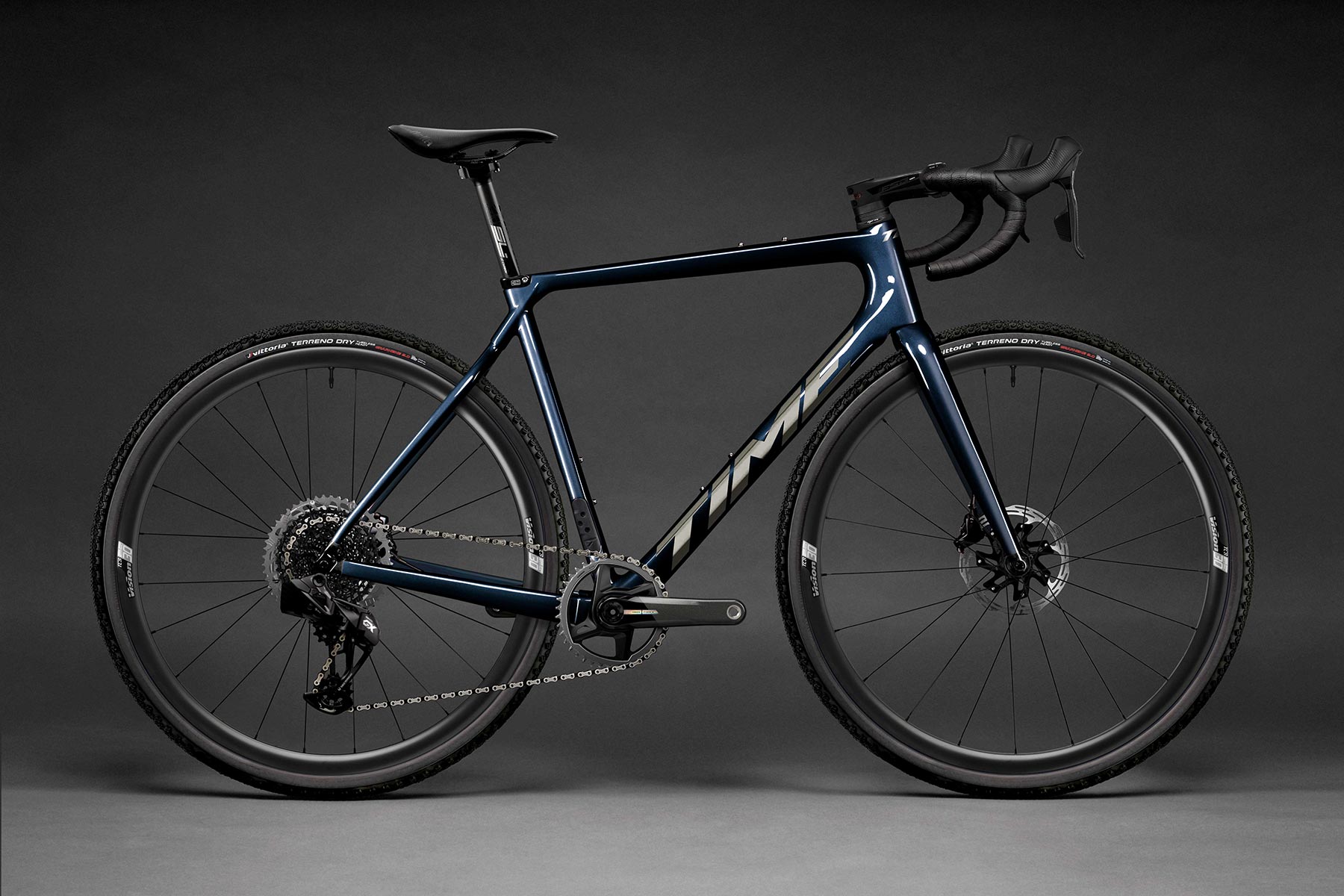

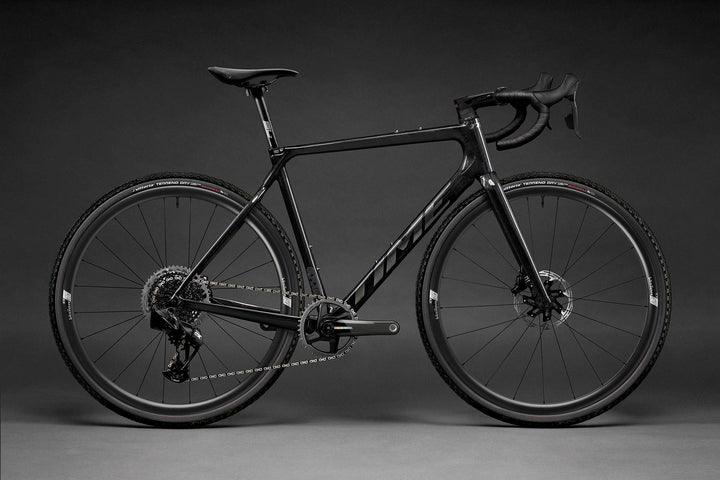

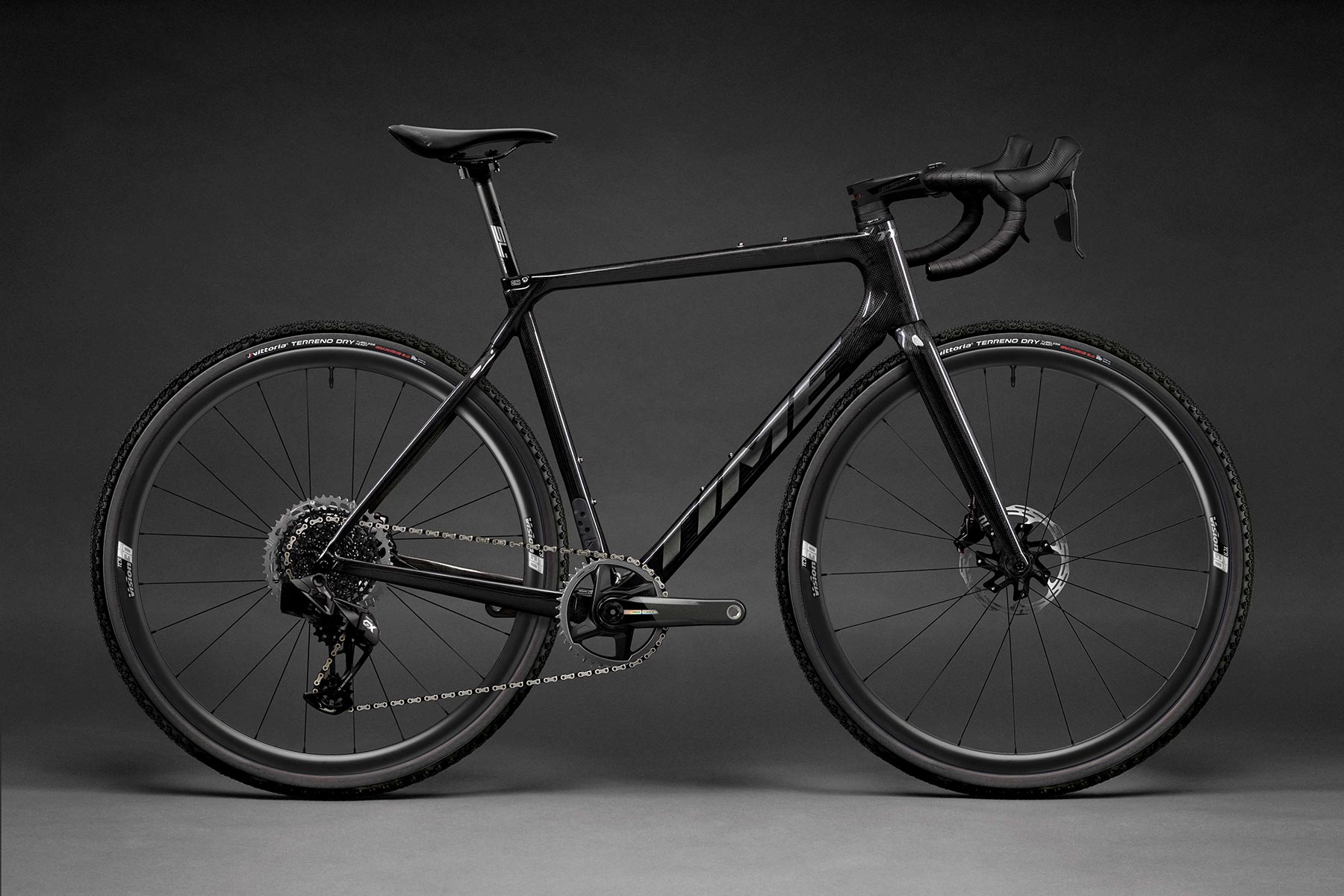

ADHX 45 SRAM FORCE/EAGLE 1x
ADHX 45 SRAM FORCE/EAGLE 1x
ADHX 45 SRAM FORCE/EAGLE 1x
ADHX 45 SRAM FORCE/EAGLE 1x
ADHX 45 SRAM FORCE/EAGLE 1x

ADHX 45 SRAM FORCE/EAGLE 1x

Regular price$7,490.00
/

The Peak Gravel Experience

The ADHX 45 is smooth, stable, and uncommonly durable; when asked, it rips. It’s not easy to create a bike this refined and balanced. We at TIME might have an unfair advantage when designing gravel bikes with our BCS and RTM manufacturing processes, which yield an unparalleled standard of precision and consistency that conventional pre-preg carbon frames cannot match. This distinction is evident in every TIME frame's impeccable, flawless finish. Meticulously crafted to be perfect inside and out, our bikes deliver durability that lets us stand behind the ADHX 45 with the same Lifetime Warranty we offer for all our models.

Ready to Paint

TIME framesets can be purchased unpainted in a prepped and sanded condition and with all hardware. Deliver the Ready to Paint frameset to the paint shop of your choice to create the TIME of your dreams!

Size
Color
Wheelset

  • Worldwide Shipping
  • Hassle-Free Returns
  • 100% Secure Checkout
  • TIME Lifetime Warranty
  • Responsive Customer Support

ADHX 45 SRAM FORCE/EAGLE SPECIFICATIONS
FRAME MATERIAL
BCS Carbon Fiber - Dyneema® Enhanced
THRU AXLES
12x120x1.0 Pitch Front
12x159x1.0 Pitch Rear
SIZES
XS, SM, MD, LG, XL
SEATPOST DIAMETER
ø27.2mm
FORK STEERER TUBE
Tapered 1-1/8" to 1-1/2"
SEATPOST CLAMP
Proprietary ADHX 45 Alloy
HEADSET BEARINGS
Top and Bottom 1-1/2" (with internal routing compression ring)
SHIFTING
Compatible with Electronic and Standard Shifting Systems
WHEEL SIZE
700c/650b
FRONT DERAILLEUR
1X and 2X Wide Compatible with Integrated Single Cover and Drivetrain Conversion Kit
MAXIMUM TIRE WIDTH

700x32-45c Gravel Tire
650x50c Gravel Tire

Not all tire/rim combinations fit with adequate clearance - check for appropriate fit

REAR DERAILLEUR
Universal Derailleur Hanger, Standard Mount
BOTTOM BRACKET
PF BB386
SRAM DUB Press Fit
BRAKE TYPE
Front and Rear Flat Mount Disc
DISC HUB STANDARD
12x100mm F, 12x142mm R
ROTOR SIZE
140/160mm with Adapter

HANDLEBAR


FSA A-Wing AGX

STEM


FSA SMR

SADDLE
Selle Italia Novus Boost EVO Superflow

SEATPOST
FSA SL-K 27.2mm

BRAKES
SRAM Force HRD

ROTORS
SRAM Paceline X CL 160mm

SHIFTERS
SRAM Force AXS

FRONT DERAILLEUR
N/A

REAR DERAILLEUR
SRAM GX Eagle AXS

CASSETTE
SRAM XG1275 10-50t 12 sp

CRANKSET
SRAM Force 40t

CHAIN
SRAM GX Eagle

WHEELS
Choose between the following wheelsets:

VISION SC 30 AGX
MAVIC ALLROAD SL
BOYD CCC ALLOY

TIRES
Vittoria Terreno Dry Endurance 700x45c

ELECTRONICS
SRAM Powerpack 1



WHAT'S INCLUDED

FSA SMR Stem

FSA A-Wing AGX Handlebar
Front and Rear Thru Axles

Alloy Bottle Bolts

Integrated Seatpost Clamp

Front and Rear Derailleur Hangers

Single Cover and Drivetrain Conversion Kit

FSA Headset for Semi & Fully-Integrated Cockpits

Geometry
