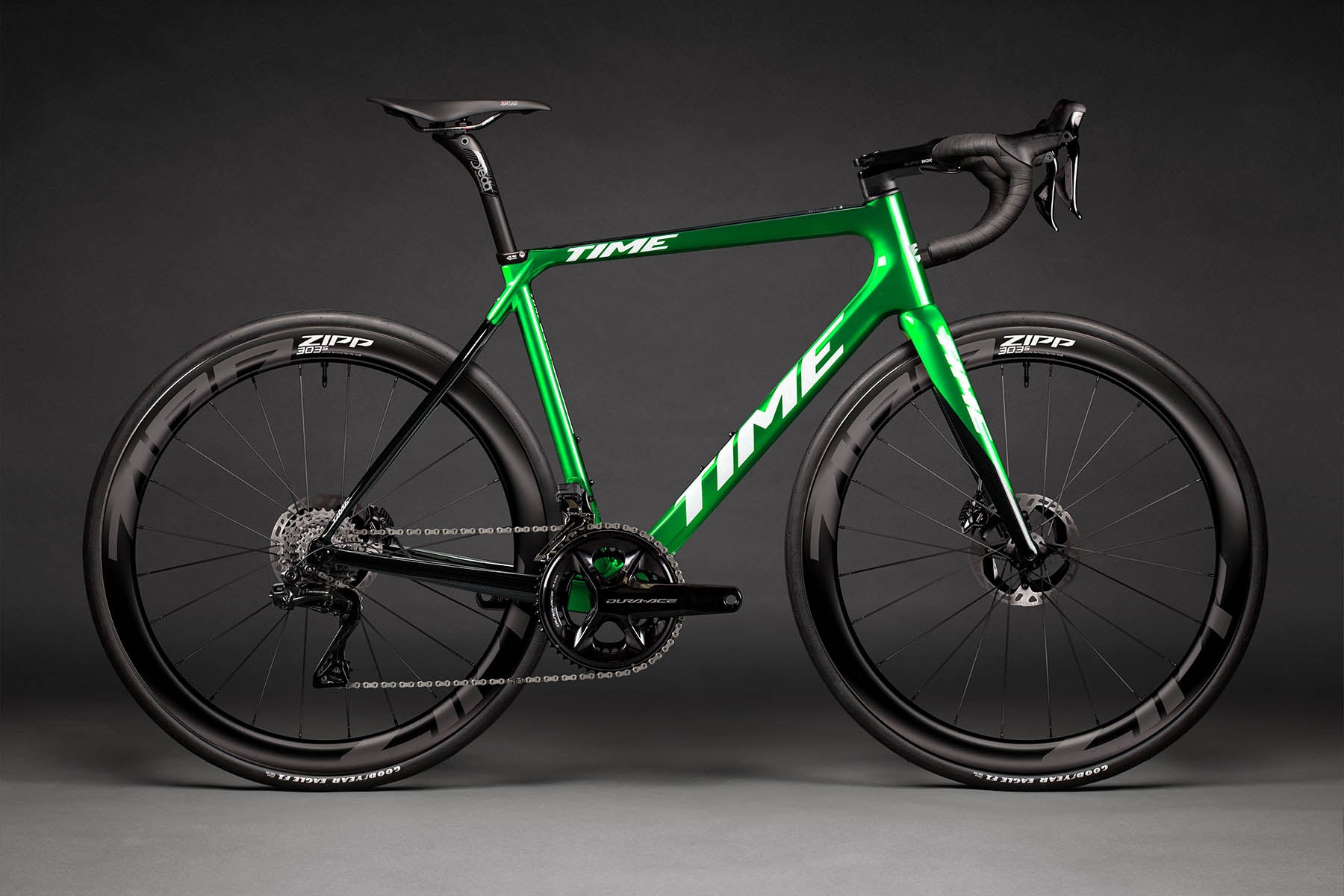

The Evolution of Alpe d'Huez
Alpe d'Huez is more than a climb in Le Tour. Helicopters, police escorts, blue smoke, screaming face-painters, and a crowd of 300,000 cycling fans guarantee that every visit to this legendary summit will be crowned forever in glory. It's this unmistakable marriage of history, spectacle, colossal effort, sportsmanship, and beauty that is woven into every Alpe d'Huez frame we make. To ride the new TIME Alpe d'Huez disc is to enjoy something that eludes description that can't be duplicated by any other bike. This is the Ultimate Road Bike.
We took the Vectran®enhanced structure of the ADH 01 and increased the amount of light and stiff Toray M40J, and added Dyneema®, the World's Strongest Fiber, to create our most advanced BCS hybrid blend ever.
|
HANDLEBAR |
FSA K-FORCE COMPACT ACR |
|
TAPE |
ARUNDEL GECKO GRIP |
|
STEM |
FSA ACR |
|
SADDLE |
SELLE ITALIA NOVUS BOOST EVO SUPERFLOW |
|
SEATPOST |
FSA K-FORCE LIGHT |
|
BRAKES |
SHIMANO DURA-ACE 9270 DISC |
|
ROTORS |
SHIMANO MT900 CL 160MM |
|
SHIFTERS |
SHIMANO DURA-ACE 9270 Di2 |
|
FRONT DERAILLEUR |
SHIMANO DURA-ACE 9250 Di2 |
|
REAR DERAILLEUR |
SHIMANO DURA-ACE 9250 Di2 |
|
CASSETTE |
SHIMANO DURA-ACE 9200 11-30T 12S |
|
CRANKSET |
SHIMANO DURA-ACE 9200 52/36T |
|
BOTTOM BRACKET |
FSA PRESS FIT |
|
CHAIN |
SHIMANO M9100 |
|
WHEELS |
VISION SC45 DISC |
|
TIRES |
VITTORIA CORSA N.EXT 700X28C |
|
ELECTRONICS |
BATTERY, CABLE, EWIRES |
| ADH DISC FRAME SPECIFICATIONS | |
|---|---|
|
FRAME MATERIAL BCS Carbon Fiber, Vectran™ and Dyneema® |
THRU AXLES 12x120x1.5mm Pitch F, 12x159x1.5 |
|
SIZES XS, SM, MD, LG, XL |
SEATPOST DIAMETER ø 27.2mm |
|
FORK STEERER TUBE Tapered 1-1/8" to 1-1/2" Vectran™ Enhanced |
SEATPOST CLAMP Proprietary ADH Alloy |
|
HEADSET BEARINGS Top and Bottom 1-1/2" (with internal routing compression ring) |
SHIFTING Compatible with Electronic Shifting Systems. Mechanical-compatible frames available by special order. |
|
WHEEL SIZE 700c, ETRTO 28-622 |
FRONT DERAILLEUR 1X and 2X Compatible |
|
MAXIMUM TIRE WIDTH 28c |
REAR DERAILLEUR Standard Mount |
|
BOTTOM BRACKET PF BB386 EVO |
BRAKE TYPE Front and Rear Flat Mount Disc |
|
DISC HUB STANDARD 12x100mm FRONT, 12x142mm REAR |
ROTOR SIZE Max 160mm with DM Adapter |
